Telescopic chute,loading bellows
Product description:
JLSG series bulk materials telescopic chute, grain unloading tube is designed and made as per international standard. It adopts famous brand reducer, anti-exposure control cabin and could work reliable in high dust environment. This equipment is made with many good features including novel structure, high automated, high efficiency, lower working intensity, and dust-proof, environmental protection, etc. It’s widely used in grain, cement and other large bulk materials loading and unloading. It’s suitable for bulk materials train, truck loading, vessel loading and others.
For JLSG telescopic chute, single unit’s normal working capacity is 50t/h-1000t/h. And users must provide the required telescopic chute length.
Features
. Intelligent material level sensor, tracing material’s automatic lifting.
. manual-automatic operation.
. high reliable control system
. provide electrical interlock control signal / operation status signal connection, easy for central control.
. general / anti-exposure selection.
. telescopic chute length adjustable, less installation space.
Video:
Technical Parameters:
| Model | Loading capacity (T/H) | Power | Length | Air volume for dust collector |
| JLSG | 50-100 | 0.75-3KW | ≤7000mm | 1200 |
| JLSG | 200-300 | 2000 | ||
| JLSG | 400-500 | 2800 | ||
| JLSG | 600-1000 | 3500 |

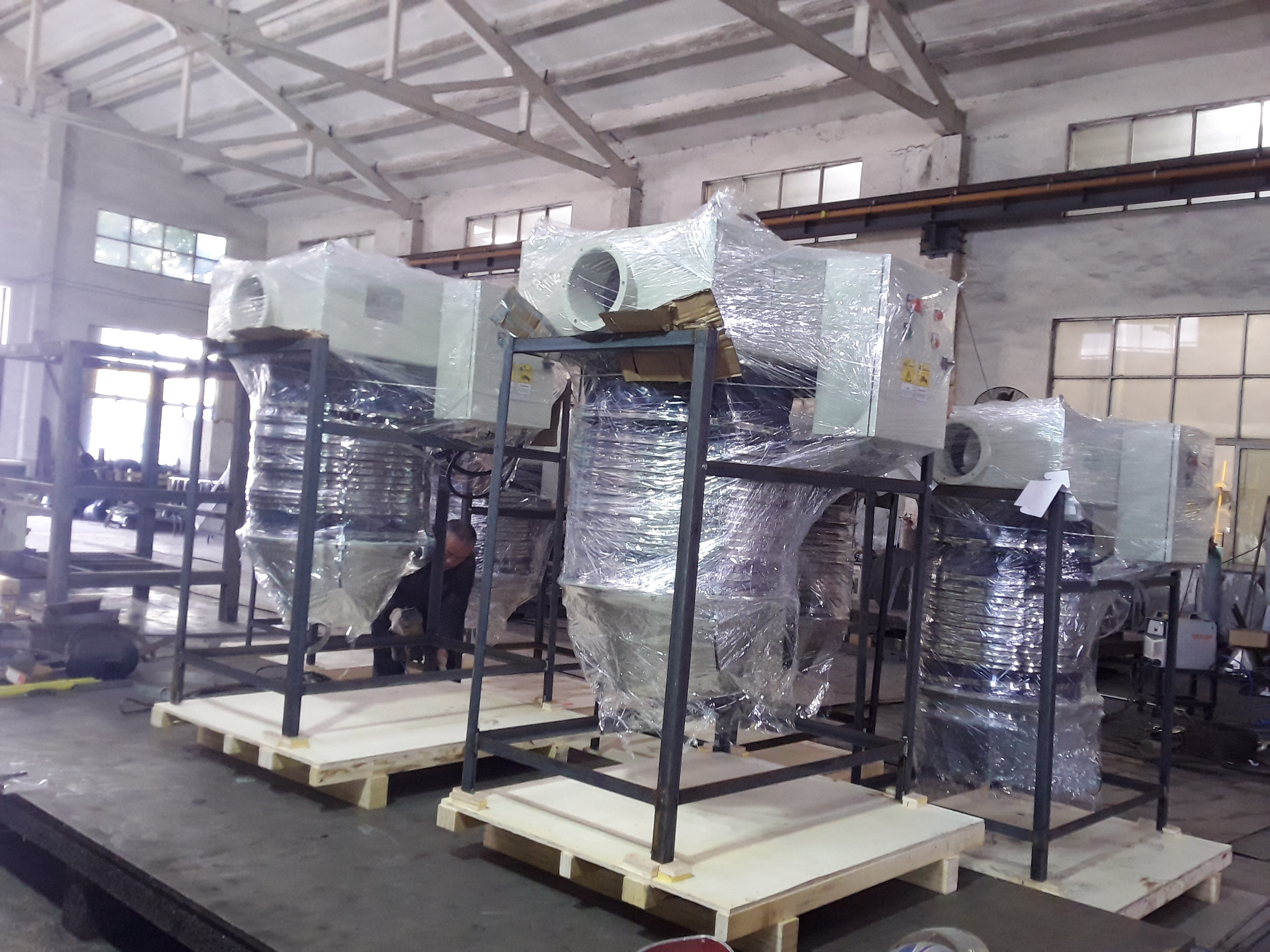

Products pictures:
Our Configuration:
Production Line:

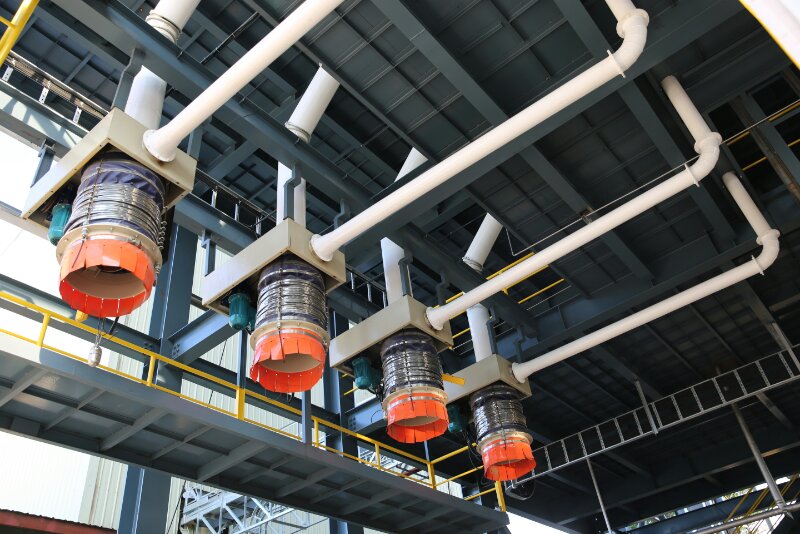

Projects show:
Other auxiliary equipment:
