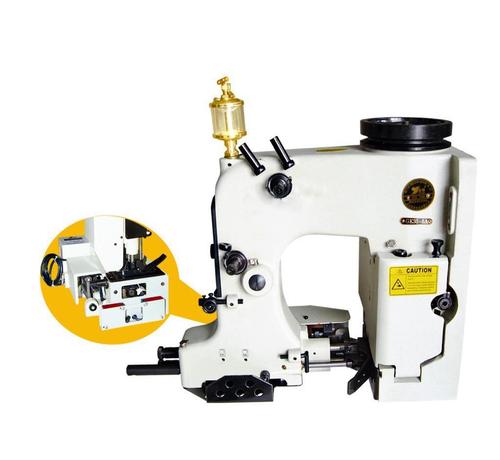

Bag sewing machine GK35-6A Automatic Bag Closing Machine
Introduction
Sewing machine is a device for sewing the mouth of plastic woven bags, paper bags, paper-plastic composite bags, aluminum-coated paper bags and other bags. It mainly completes the stitching and seaming of bags or knitting. It could automatically finish the processes of dust-cleaning, trimming, stitching, binding the edge, cutting off, heat sealing, press closing and counting etc. This series machine adopts the advanced technology of light, electricity, and mechanism to guarantee its full automation and high performance. After sealing, stitching, binding edge and hot pressing, the sealing performance of bags is very excellent, which has the advantage of dust-proof, moth-eaten proof, pollution proof and could protect the package appropriately.
Technical Parameters
| Model | GK35-2C | GK35-6A | GK35-8 |
| Max. Speed | 1900 Rpm | 2000 Rpm | 1900 Rpm |
| Thickness of material | 8 mm | 8 mm | 8 mm |
| Range of Stitch width | 6.5-11 mm | 6.5-11 mm | 6.5-11 mm |
| Thread type | 20S/5, 20S/3, Synthetic fibre thread | ||
| Needle | Model 80800 ×250# | ||
| Thread chain Cutter | Manual | Electro-pneumatic | Electro-pneumatic |
| Weight | 27 Kg | 28 Kg | 31Kg |
| Size | 350×215×440 mm | 350×240×440 mm | 510X510X335 mm |
| Start-stop Type | pedal switch | light-controlled switch | pedal switch |
| Re-mark | Single-Needle, Two-Thread | Double-Needle, Four-Thread | |
Details
