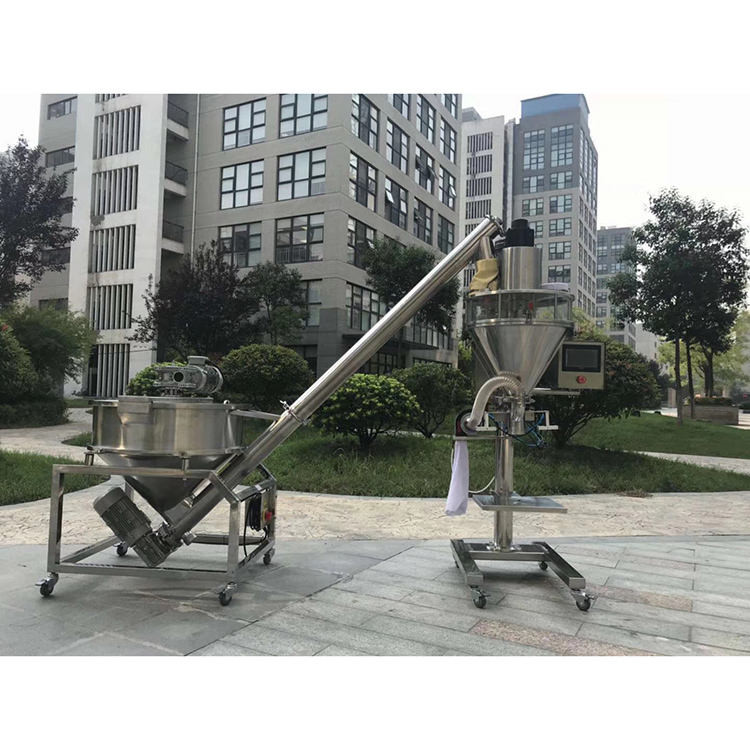

Full Automatic 1kg Bag Wheat Flour Bagging Machine Small Powder Packaging Machine
Brief Introduction:
This Powder filler is suitable for quantitative filling of powdery, powdery, powdery materials in chemical, food, agricultural and sideline industries, such as: milk powder, starch, spices, pesticides, veterinary drugs, premixes, additives, seasonings, feed
Technical Parameters:
| Machine model | DCS-F |
| Filling method | Screw metering (or electronic weighing) |
| Auger volume | 30/50L (can be customized) |
| Feeder volume | 100L (can be customized) |
| Machine material | SS 304 |
| Packing speed | 20-60 BPM |
| Filling volume | 1-5000g (can be customized) |
| Filling accuracy | ±1% (different volume and material, accuracy will be little different) |
| Power specifications | 220V 50hz or customized |
Machine features
♦ 50L side opening Hopper, easy to clean.
♦ Packaging powdery in 50-5000g bottle or bag.
♦ Servo motor drive the auger, got high accuracy.
♦ Have one stir on the hopper, assure the powder fill in the auger.
♦ Chinese/English or custom your language in the touch screen.
♦ Reasonable mechanical structure, easy to change size parts and clean up.
♦ Through changing accessories, the machine is suitable for various powder products.
♦ We use famous brand electric, more steady.
Application
Suitable for food, medicine, biology, chemical industry and so on. Such as dry powder, coffee powder, veterinary drugs, powder granular additives, sugar, glucose, solid drinks, solid medicine, carbon powder, powder, pesticides, dyes, flavors, etc.
