Stainless Steel Auger Screw Feeder Machine Conveyor Chicken Feed Cement Mixing
Brief introduction

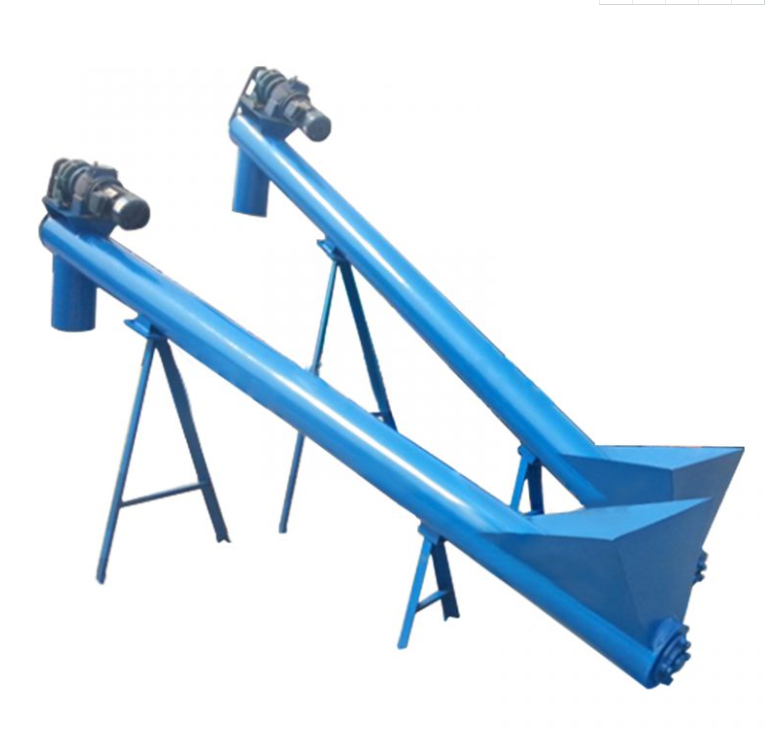

The Screw Conveyor system is highly versatile. They are manufactured from stainless steel with surface finishing grade suitable for the application. Fabrication of the troughs is carried out on machines ensuring perfectly smooth surfaces which is why material residue is reduced to the minimum. The Screw Conveyors are made up of a U or V-shaped trough equipped with at least one outlet spout, an end plate at each trough end, helicoid screw flighting welded on a centre pipe with coupling bush at each end, two end bearing assemblies complete with adjustable shaft seal, a number of intermediate hanger bearings depending on the overall length of the screw conveyor, and bolted trough covers. Furthermore, they are equipped with a gear motor appropriate for the application.
Technical parameters
| Name | Screw feeding machine |
| Feeding capacity | 3m³/hour |
| Power | 2.5KW |
| Diameter of screw | 114mm |
| Hopper capacity | 230L |
| Power supply | 220V 50/60HZ |
| Weight | 140 KG |
| Dimension | (L)1023mm*(W)823mm*(H)870mm |
Mr.Yark
Whatsapp: +8618020515386
Mr.Alex
Whatsapp:+8613382200234
